The ZP8OOG is a large-diaphragm condenser FET microphone designed for the ultimate modern vocal recording in a studio or post-production environment. The ZP8OOG excels on vocals

But has proven to be extremely useful

on instruments also.

The ZP8OOG requires no Equalizer or FX applications to cut through a modern full loud mix and still remain A natural and smooth character with micro details all over the spectrum together with A full-body presence with air on top and focused deep lows. The ZP8OOG has a natural tugged together compressed forward sound in the mid-zone and present upper mid, the top is open and airy with a very smooth silk texture. The lows are articulate and also have A 3d dept to them that you usually only expect from tubes microphones.

The ZP800G is no physical clone of the well famous Sony C800G, But build on A whole new concept with NOS parts in the audio path like (PIO) paper & oil capacitors plus military and top-notch grade parts together with the ZP custom-made Capsule that response like A omni setting in cardiode preventing the proximity effect to overrule the recording plus keeping room sound out. Creating superb audio quality plus timbre and extreme focus that is identical to the Sony - c800G.

Not every vintage mic sounds alike when time breaks in,  the ZP8OOG is tuned to the new modern spirit with A extra clean an clear sound and slight rounder top frequency response that helps to prevent the need of A de-esser to control SSS sounds + with less self-noise and lower maintenance cost since expensive tubes are left out.



CAPSULE

ELECTRONICS

Schermafbeelding 2021-02-20 om 10.47.24.

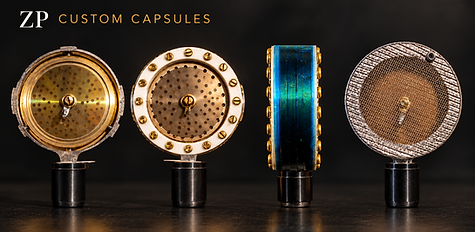

Custom made Capsule

By ZP Microphones

For the ZP800G

34MM Gold Capsule

Build For perfection

Double chamber

K67/87 Drill Pattern

German quality standards

Hand build Microphone

Best NEW & NOS PARTS

PIO (Paper Oil)

Wima /Nichicon - Audio grade

+ NOS Military Grade  caps

High grade Wiring

Top Notch quality Control


SPECIFICATIONS

  • High sensitivity of -33dB/Pa

  • Large diaphragm capsule ZPK8A Cardiode

  • Signal-to-noise ratio: 82 dB

  • Sensitivity Cardiode -33dBV/PA - (22mV/Pa)

  • Frequency response: 20 Hz-18,000 Hz

  • Dynamic range: 113 dB

  • Equivalent noise level: A-weighted 12 dB-a

  • Max SPL (dB SPL) 130 dB SPL

  • Matching connector — XLR 3 F

  • Power Requirements: 48v phantom

  • Dimensions: 50 mm dia. x  192 mm high

  • Weight: 405 gram

  • Accessories:  transport hard case & shock mount
